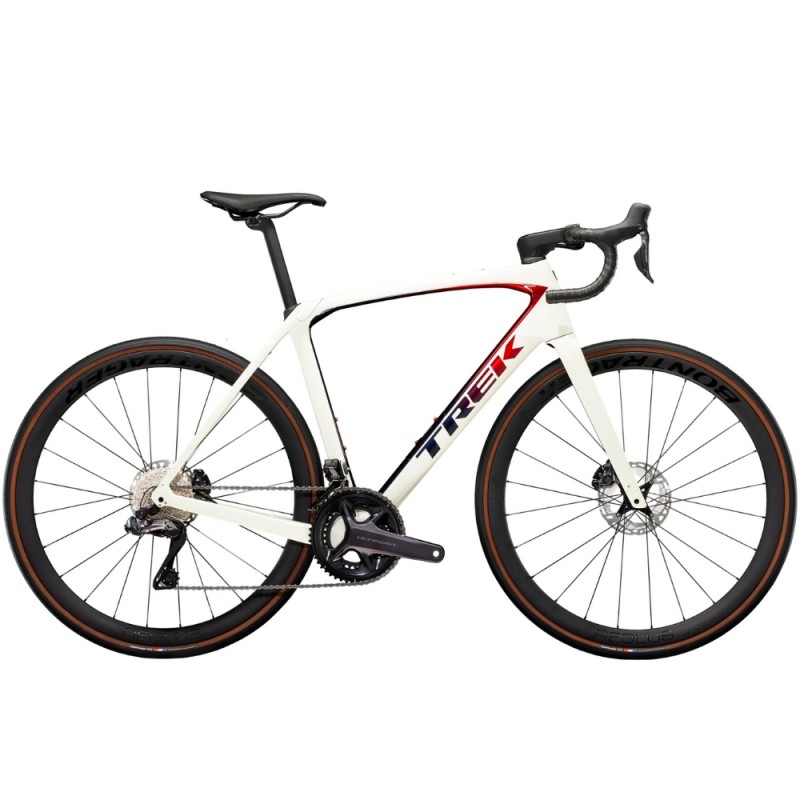

2024 TREK DOMANE SL 7 GEN 4 ROAD BIKE
SPECIFICATION :
| frame |
500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle BB Standard: T47, Threaded Tire Clearance: 38c |
|---|---|
| FORK | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| BOTTOM BRACKET | Praxis, T47 threaded, internal bearing |
| STEM | Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length |
| HANDLEBAR | Size: 47, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width; Size: 50, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width |
| SADDLE | Size: 47, 50, 52, Bontrager Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Short Comp, steel rails, 145mm width |
| SEATPOST |
Size: 47, 50, 52, 54, 56, KVF aero carbon seatpost, 20mm offset, 280mm length; Size: 58, 60, 62, KVF aero carbon seatpost, 20mm offset, 320mm length Type: Rigid |
| RIMS | Front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle |
| TIRES | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| DISC ROTORS | Shimano CL800, centerlock, 160mm |
| REAR DERAILLEUR | Shimano Ultegra R8150 Di2, 34T max cog |
| FRONT DERAILLEUR | Shimano Ultegra R8150 Di2, braze-on, down swing |
| CRANK | Size: 47, Shimano Ultegra R8100, 50/34, 165mm length; Size: 50, 52, Shimano Ultegra R8100, 50/34, 170mm length; Size: 54, 56, Shimano Ultegra R8100, 50/34, 172.5mm length; Size: 58, 60, 62, Shimano Ultegra R8100, 50/34, 175mm length |
| SHIFTERS | Shimano Ultegra R8170 Di2, 12 speed |
| CASSETTE | Shimano Ultegra R8100, 11-34, 12 speed |
| CHAIN | Shimano Ultegra/XT M8100, 12 speed |
| BRAKES |
Shimano Ultegra hydraulic disc, flat mount Type: Hydraulic Disc |
